What Is An Earth Electrode and What Does It Do?

What is an Earth Electrode, and Why Is It Essential for Your Electrical System?

Earth electrodes play a critical role in maintaining safety in any electrical system. They connect directly between the electrical system and the earth, ensuring that your electrical system remains grounded. But what exactly is an earth electrode, and why should you care about it? Let’s explore.

What Is an Earth Electrode?

An earth electrode is a conductor that connects an electrical system to the ground. Essentially, it’s a metallic component buried in the earth to form a path for fault currents or unwanted electricity to flow safely into the ground. This grounding is crucial to prevent electrical hazards and maintain the stability of your system.

There are several types of earth electrodes, including:

• Copper-bonded steel rods: Known for their conductivity and resistance to corrosion.

• Concrete-encased electrodes: Often used in large or industrial systems.

Each type has a specific function in the electrical system, but they all provide an earth connection to ensure the safety and proper operation of the system.

Why Are Earth Electrodes Important?

Earth electrodes are vital for safety in both residential and commercial electrical systems. Here's why:

1. Earth electrodes are your shield against Electrical Shocks: In the event of a fault, such as a live wire coming into contact with metal parts, the earth electrode provides a safe path for the electricity to flow into the ground, significantly reducing the risk of electrocution. This crucial function ensures your safety and peace of mind. Regular checks for your earth electrode are not just a precaution; they are a responsibility.

2. Protects Electrical Equipment: Earth electrodes help prevent damage to appliances, electronics, and other electrical equipment from power surges or malfunctions by safely directing fault currents into the earth.

3. Reduces Electrical Interference: Proper grounding also helps minimise electrical interference and prevent issues with communication systems, sensitive equipment, or control systems.

What Happens if Your Earth Electrode is Faulty?

A faulty earth electrode can be extremely hazardous. If it fails, it may cause the following:

• Electrical Shocks: If you experience tingling sensations or shocks when touching metal surfaces in your home, this could indicate a problem with the earthing system.

• Damage to Equipment: Improper grounding may make appliances or electrical systems more prone to damage or malfunction.

• Fire Hazards: In extreme cases, a faulty earth electrode could even lead to electrical fires or explosions, especially if electrical currents aren’t properly discharged.

If you suspect an issue with your earth electrode, contact a licensed electrician immediately to inspect and repair it.

Who Can Install or Repair an Earth Electrode?

Installing or repairing an earth electrode is a specialised task that certified electricians should only carry out. Proper training and knowledge are required to ensure the grounding system is correctly installed and functions safely. Attempting to perform this work yourself is unsafe and could result in damage to your electrical system or serious injury.

What Does an Earth Electrode Look Like?

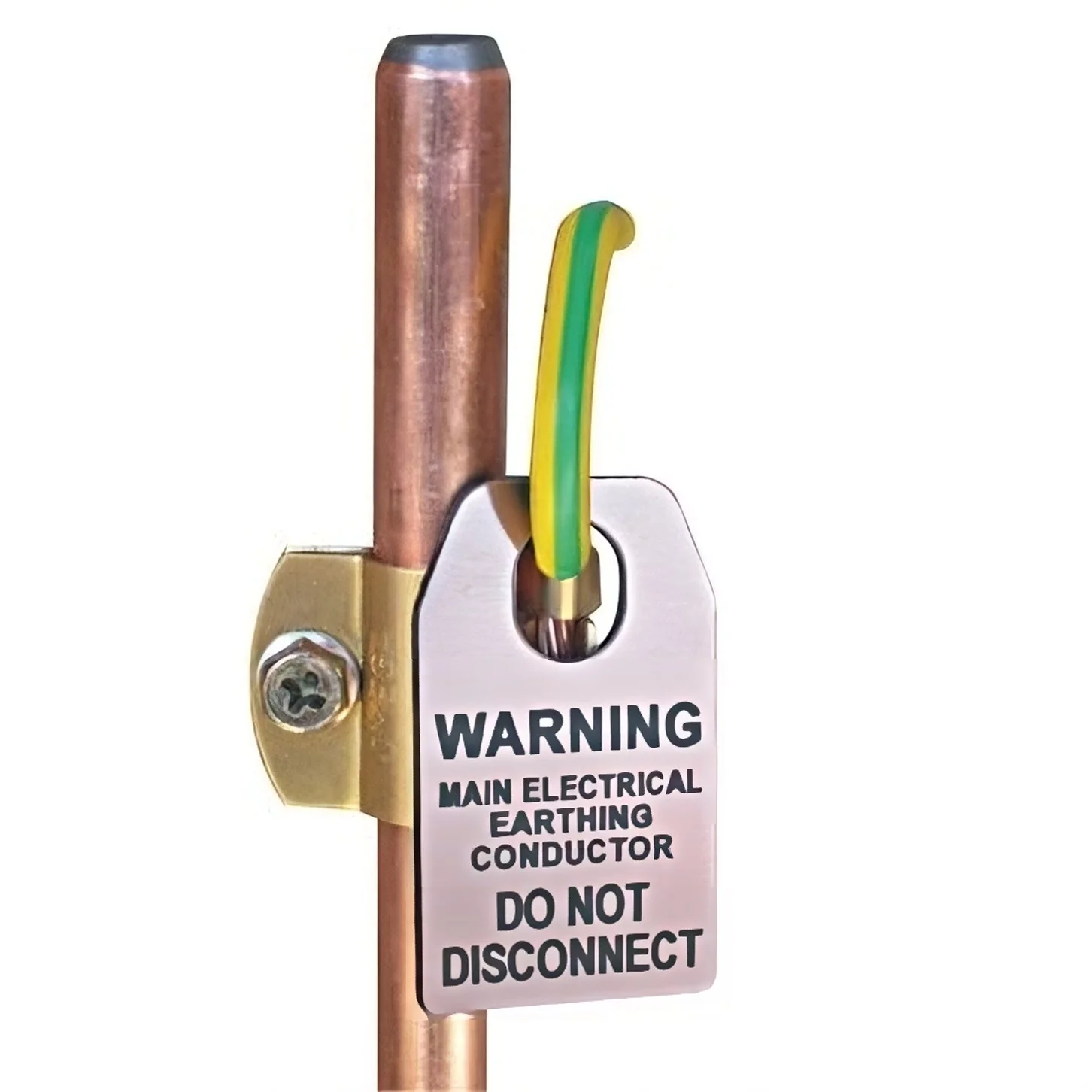

An earth electrode is typically a metal rod (often copper or steel) several feet long, driven into the ground. It is connected to the electrical system at your switchboard, creating a secure pathway for fault currents to flow safely into the earth.

In larger systems, you might also find concrete-encased electrodes used in buildings with complex electrical setups.

Get Your Earth Electrodes Checked Today

Ensuring your earth electrode is in good condition is essential for the safety of your home or business. A well-maintained earth electrode helps protect you, your family, or employees from electrical hazards.

If you suspect any issues with your earth electrode, immediate action is crucial. Don’t wait for a problem to arise. Contact a licensed electrician today to schedule an inspection or repair. Click the button below to connect with us for an assessment and to ensure the safety and stability of your electrical system.
